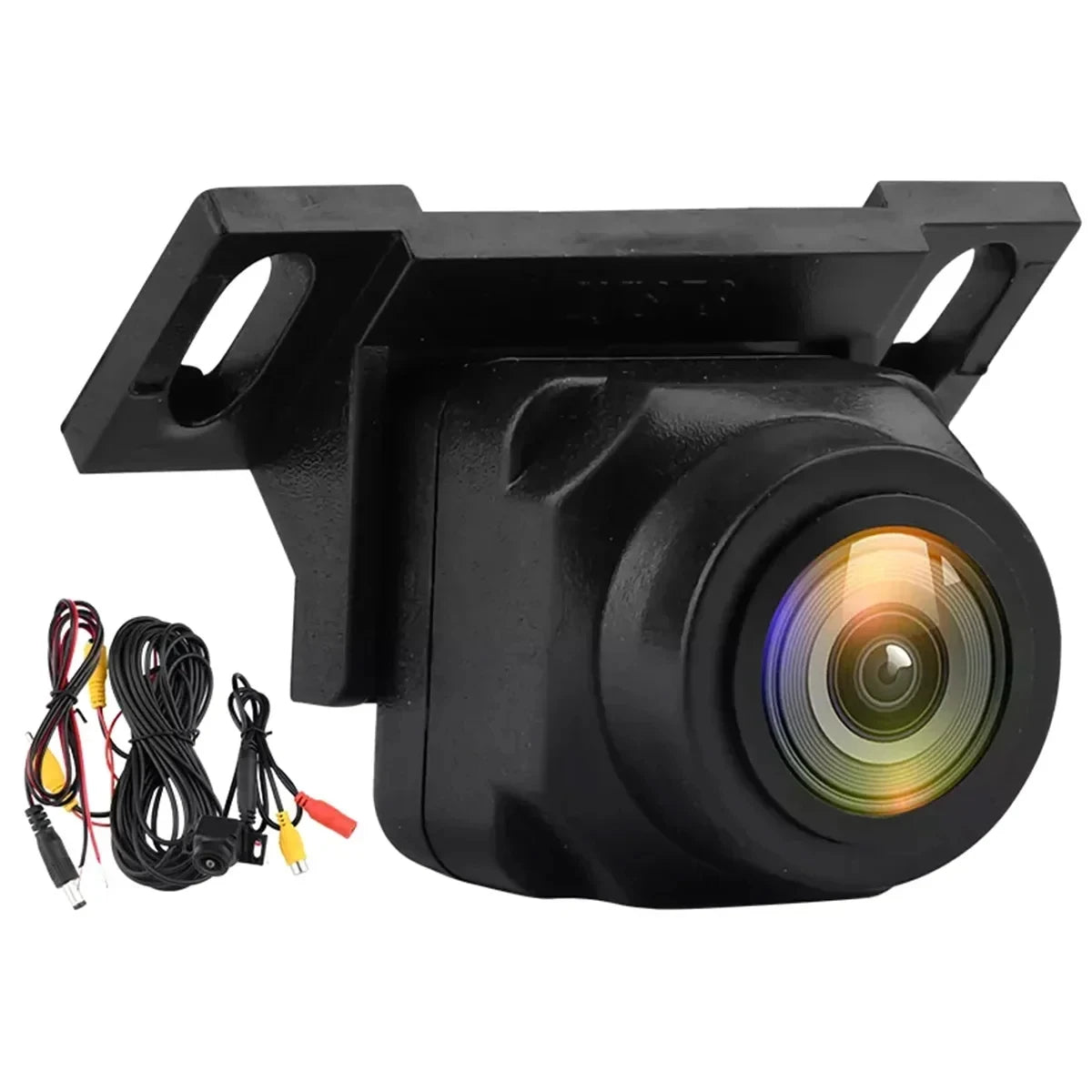

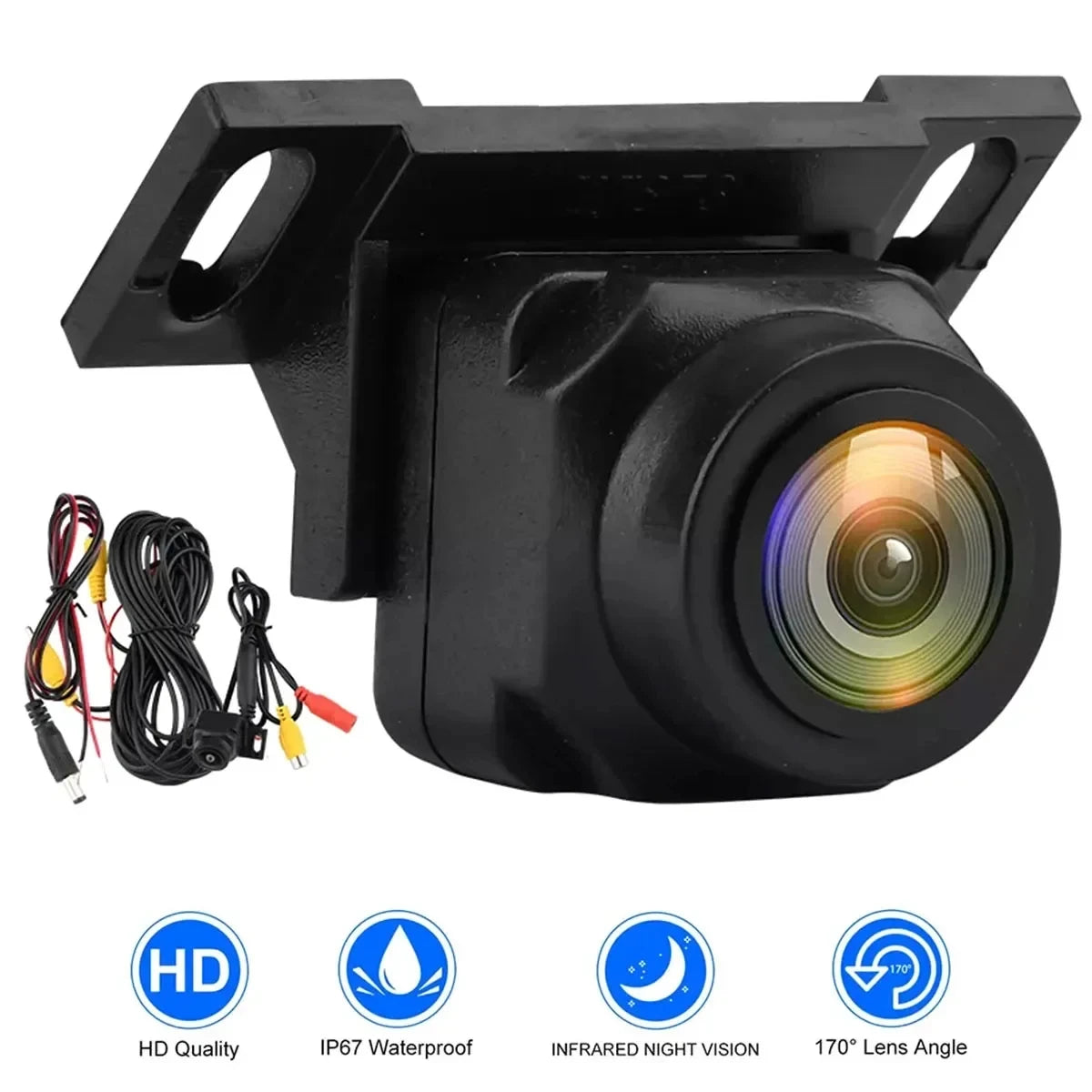

Car Backup Camera with 170 Degree Wide Angle, Night Vision and Parking Guide Lines, Waterproof, RCA Video, 19.7 ft Cable

A small backup camera with a 170 degree wide view, night vision and parking guide lines. It uses a standard RCA video connection (NTSC/PAL), so it works with most aftermarket car screens and backup monitors that have a camera input.

Key Features

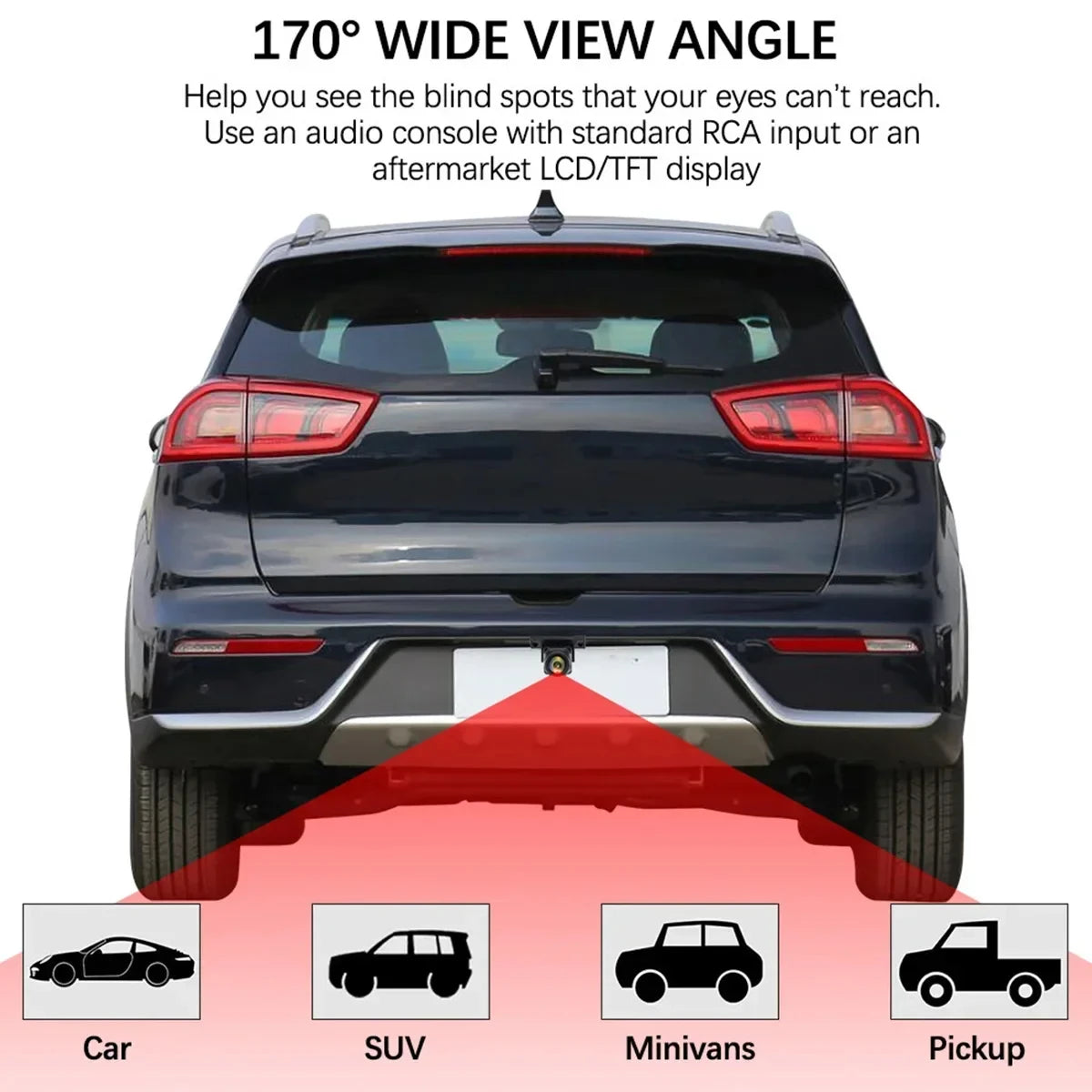

• 170 degree view: covers a wide area behind the car.
• Night vision: sees up to about 10 ft (3 m) in low light.
• Guide lines: parking lines on the screen help you judge distance.

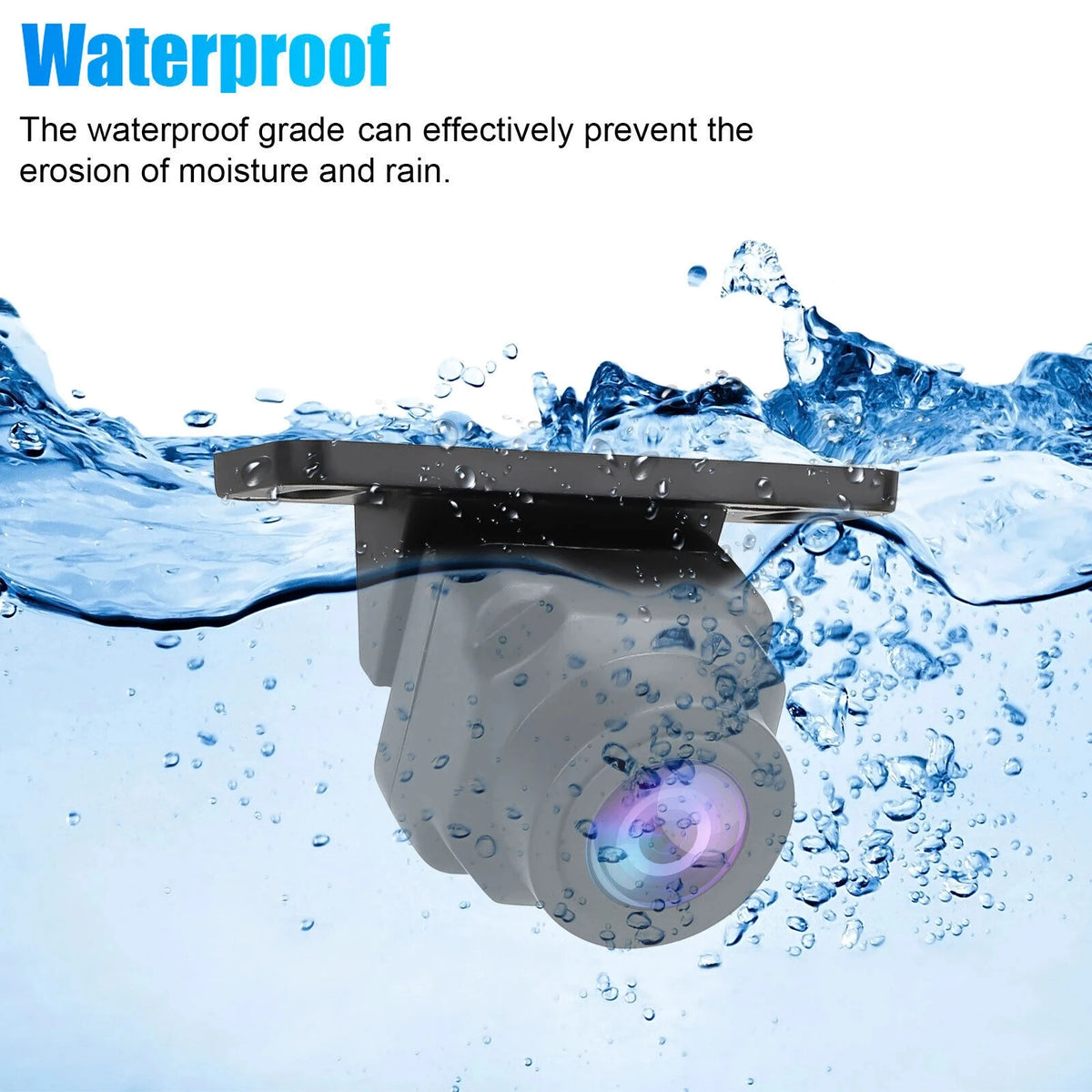

• Waterproof: made for outdoor mounting.
• Long cable: 19.7 ft (6 m) video extension cable reaches from the rear to the dash.

Specifications

• Video output: RCA, NTSC/PAL, 1.0 Vp-p, 75 ohm
• Resolution: 1000 TV lines
• Viewing angle: 170 degrees
• Minimum illumination: 0.01 lux
• Night vision distance: 0 to 10 ft (0 to 3 m)
• Power: DC 9 to 14V
• Working temperature: -22 to 176°F (-30 to 80°C)

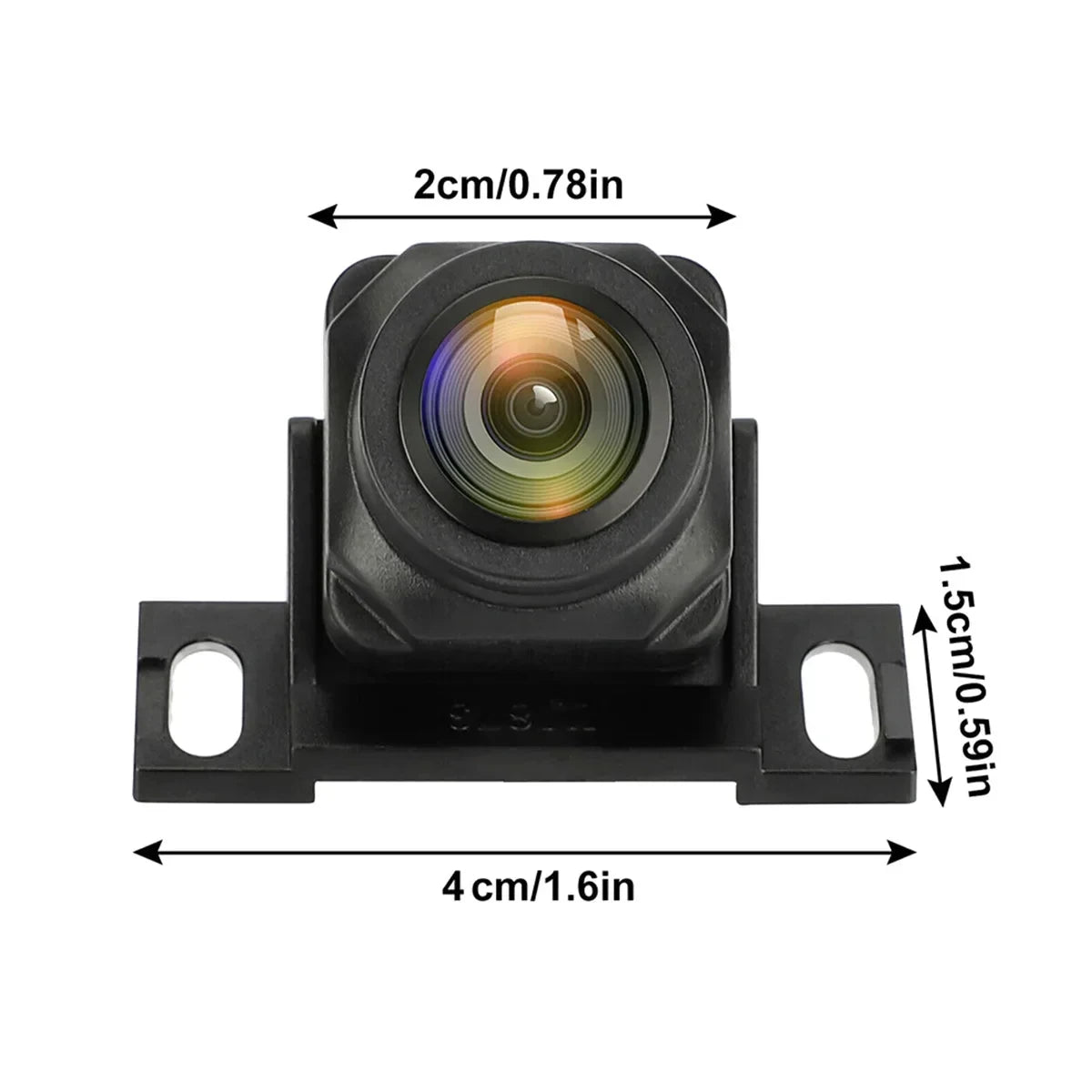

• Size: about 1.6 x 0.6 x 0.8 in (4 x 1.5 x 2 cm)
• Color: black

What's in the Box

• 1 x backup camera
• 1 x 19.7 ft (6 m) video extension cable
• 1 x 3.3 ft (1 m) power cord
• 1 x user manual

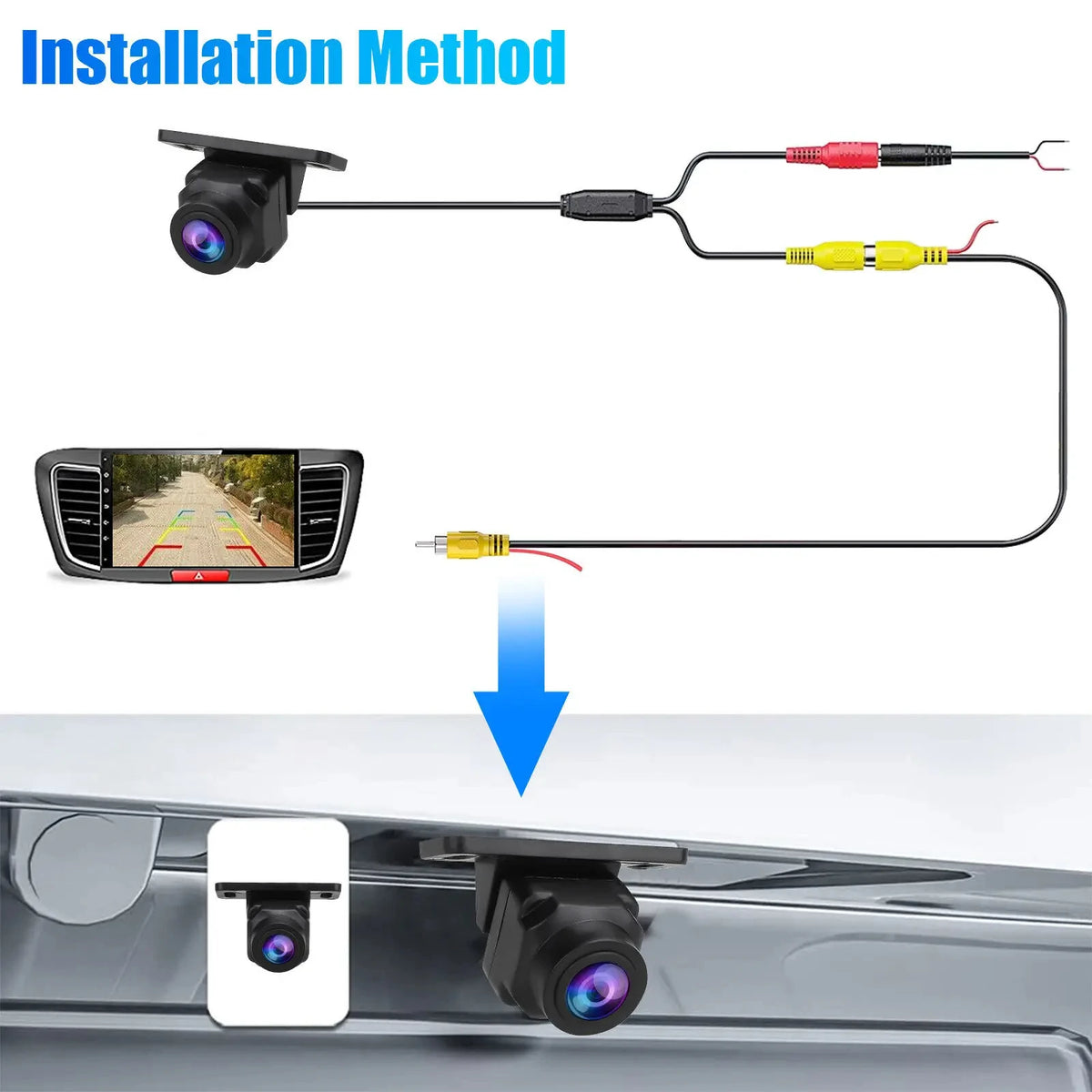

How to Install

1. Mount the camera above the license plate or on the trunk lid, pointing back and slightly down.
2. Run the video cable to your screen and plug it into the camera or AV input.
3. Connect the power cord to the reverse light circuit so the camera turns on when you shift into reverse.

Good to Know

• A screen is not included. Your screen needs an RCA camera or AV input.

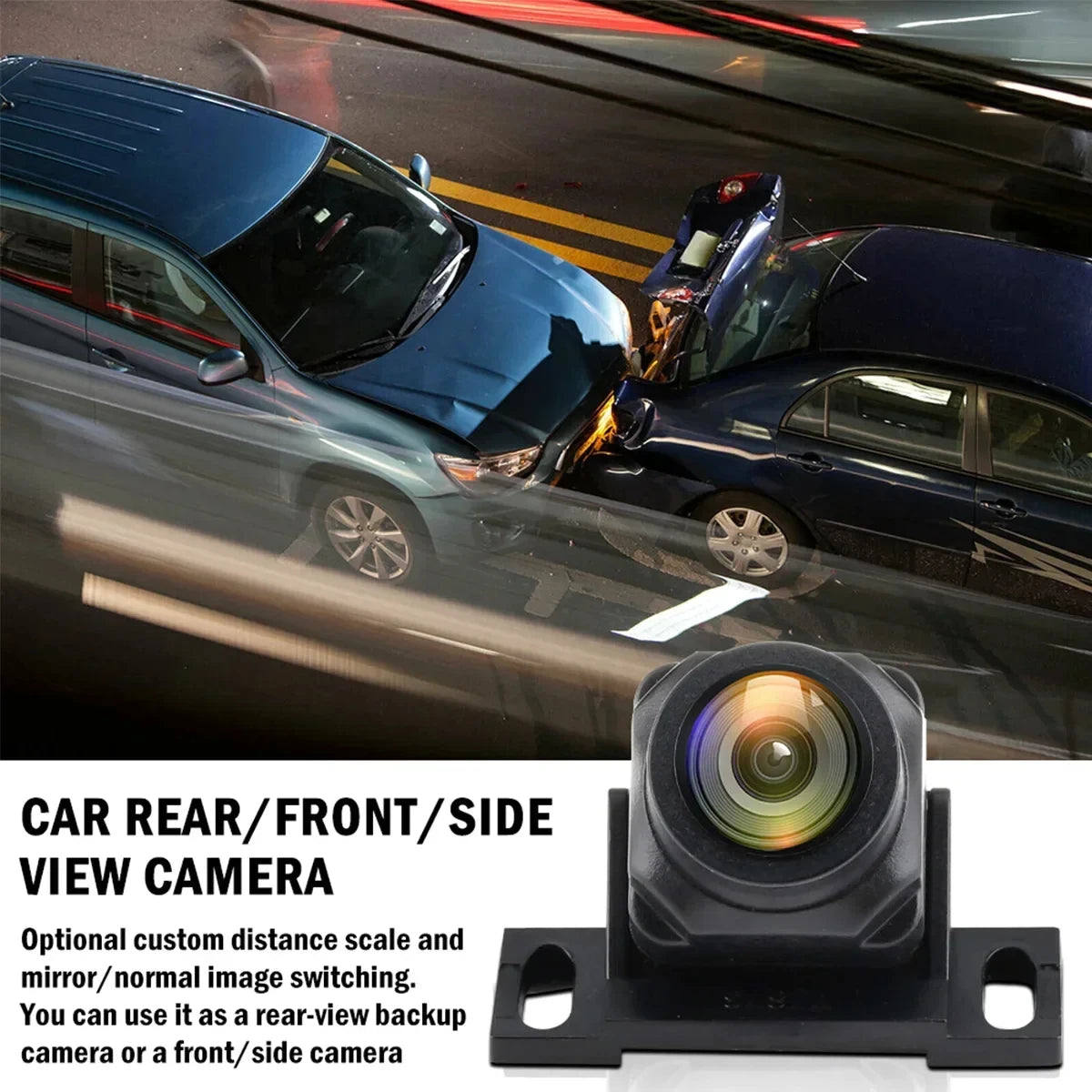

• It can also be mounted as a front or side view camera.
• If you're not comfortable with car wiring, have it installed by a car audio shop.

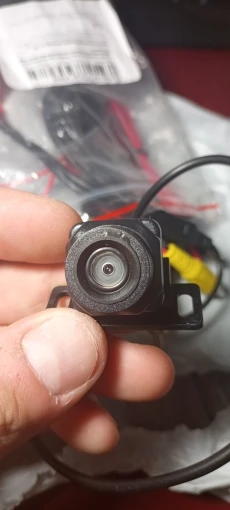

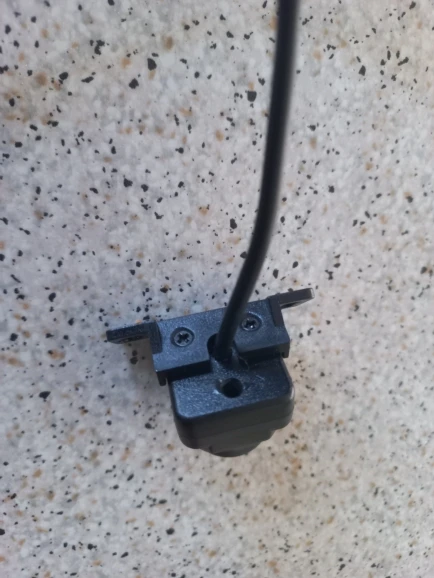

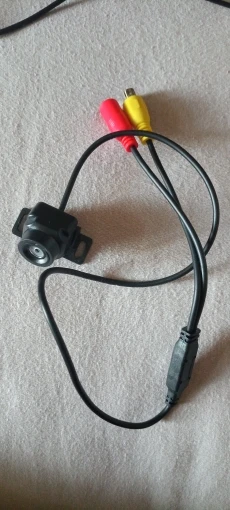

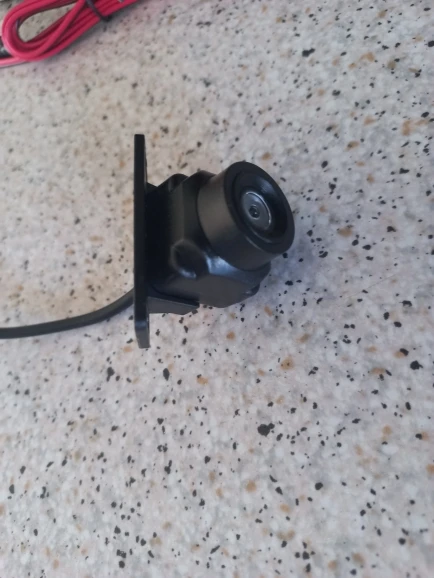

Real photos of this product
